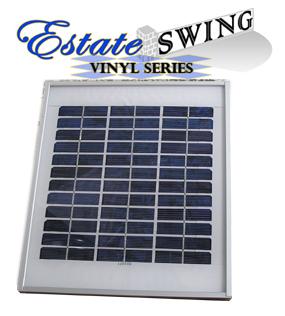

This solar panel is available in 5 Watt, 10 Watt, or 20 Watt (select option above). Complete with post and wire, this kit replaces the need for the gate opener to be connected to its transformer. The solar panel trickle charges the battery in the same way as the 110v connection. It is perfect for remote locations, long driveways, or energy conservative individuals. Solar energy is the cleanest, safest form of power available; using the sun for energy benefits the environment as well as finances and eliminates the concern of power outages.
The solar panel is completely weatherproof and virtually indestructible. The post is 3/4" square aluminum tubing which will not rust and can be painted any color to match surroundings. The post can be attached to just about any surface using the correct hardware.
*Make and model may vary from picture above.
Optimum Orientation for Solar Panels: (Your Latitude x 0.9) + 29 Degrees = # of degrees your panel should be angled towards true South from the horizontal position (laying flat, pointing directly up)
The colors on this map designate solar zones during the periods of the year when the least amount of sun light is available. The recommended cycles do not factor the power draw of accessories. Cycles are considered one full opening and closing movement of a maximum size/weight gate for the corresponding opener. Cycles are also figured to be evenly distributed (as opposed to consecutive) over a 12 to 14 hour period.
| Single Vinyl Gate Opener | Zone 3 | Zone 2 | Zone 1 |
| 5W: | 13 | 8 | 4 |
| 10W: | 26 | 16 | 8 |
| 20W: | 38 | 28 | 14 |
| Dual Vinyl Gate Opener | Zone 3 | Zone 2 | Zone 1 |
| 5W: | N/A | N/A | N/A |
| 10W: | 13 | 8 | 4 |
| 20W: | 27 | 18 | 10 |
Frequently Asked Questions
1. What if the sun isn't out; what do I do?
The system runs off of a battery; the solar panel or transformer is to keep it charged. However, there are about 40 cycles stored in the battery so there can be a cloudy day or two and the system will continue to work.
2. Is this easy to install by myself?
Yes, just bolt it to a post, point it at the sun and run two wires to the gate opener.
3. Is customer service available for trouble shooting?
Of course, this is our specialty. Call us any time 9am to 9pm EST at 1-800-537-4283.
4. Do I have to use this product on your gate openers or can I use it on any gate opener I have?
This is a solar charger that can be used for any purpose for which you may need a solar charger.
5. Is it easy to switch back and forth from your transformer to solar alternative when you choose?
Not really; it would take unwiring one and wiring in the other. Both cannot be installed at the same time or they will damage the gate opener.
|
