Two Entrance Access: It is highly recommended to have a pedestrian gate alongside a vehicular gate. The Estate Swing Advanced Keypad can be wired into both the locking system of the pedestrian gate and the vehicular gate opener. This keypad's design also permits the programming of different codes for each of these entrances.

Dual Restriction Access: If used in conjunction with a timer, it is possible to program some codes that are 24 hour access and other codes that are time restricted. The time restrictions would be dictated with the timer. For instance, the time restrictions could be set during delivery hours so that delivery personnel could access the gate opener with the code included in an order.

The Advanced Wired Keypad holds up to 500 individually editable codes. This means that is possible to change each code without affecting any of the other programmed codes. Keep codes for immediate family members confidential while retaining the freedom to create and erase codes for friends, distant relatives, dog walkers, house sitters, delivery personnel, or a number of other uses.

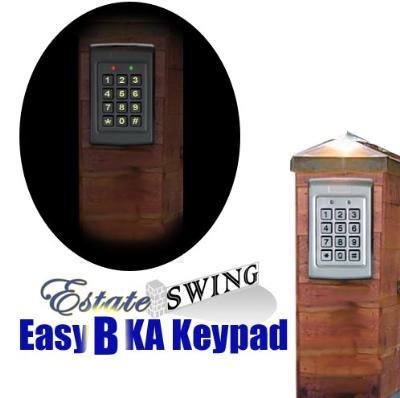

Additionally, this model is made from heavy gauge stainless steel and is designed with a tamper switch to cut off the keypad functions if the keypad is removed. It is also fully weatherproof and comes with a heater for low temperature operation. And don't worry about fumbling around in the dark; the keypad comes standard with an internally lit keypad for easy nighttime usage. The stand (optional; select above) is constructed of aluminum and is precisely hand-welded to place the keypad or intercom in the perfect location and angle.

Specifications:
Face Plate - 2"x6" (No pre-drilled hole)
Stand - 5' tall (After installation of 1' in ground, 4' tall)
Clearance - 9" from face plate to inside face of post

This unit is not recommended for usage with solar operated Estate Swing gate openers because of the power consumption of the back lit keys and the heater function.

Frequently Asked Questions

1. Do I have to use this product with your gate opener?
This has many options for use and can be used on all gate openers, most garage doors, and electric lock secured entry doors.

2. How close range does it have to be to the actual gate?
It can be wired in up to 700 feet away from the gate.

3. Is this easy to install, or do I have to hire someone to do it?
For the basic installation it is a four wire installation, simple for any home owner. All you'll need is a small screw driver and wire strippers.

4. Is customer service available if I have questions?
Of course, this is our specialty. Call us any time 9am to 9pm EST at 1-800-537-4283.

5. If I have a lot of codes programmed wouldn't it be easy for some one to guess them, and enter without my knowledge?
There are thousands of possible 4 digit combinations, the fact of the matter is criminals go after the easy targets and have a keypad secured entrance will most of the time be enough to tell them to move along.
